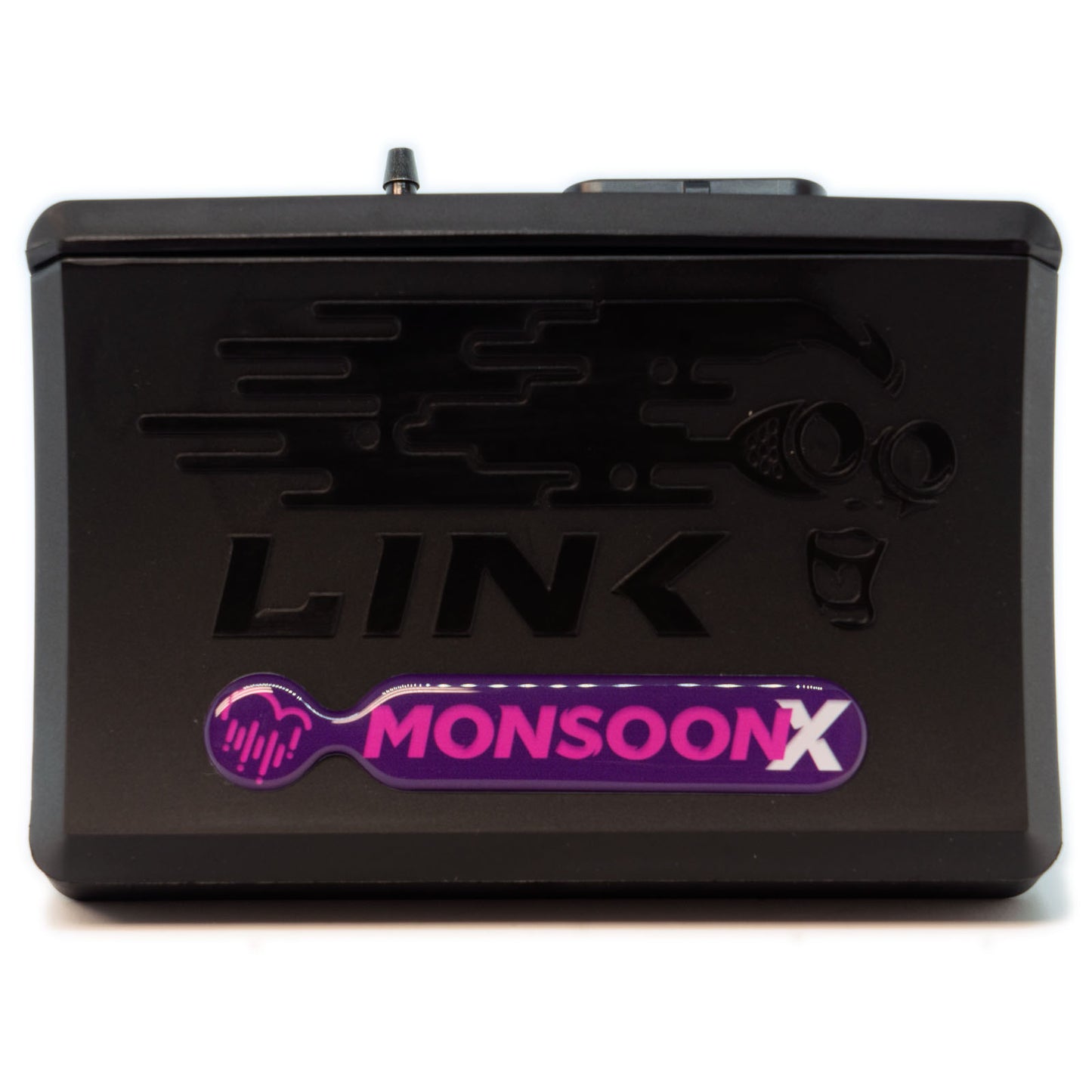

G4X MonsoonX ECU

MonsoonX

More features, more powerful.

The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire.

This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs.

The MonsoonX processing unit has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the G4X Monsoon a true powerhouse in a small shell.

The G4X logging features 512 megabytes at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

With the MonsoonX you have all the tuning capabilities of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control. It also comes with a built in 4 bar or 7 bar MAP sensor further reducing installation cost. Now featuring Knock Control.

Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

The MonsoonX is an Automotive Control Unit.

Requires A Loom.

The MonsoonX is ideal for:

1-12 Cylinder Distributed

2-8 Cylinder Wasted Spark

1-4 Cylinder Direct Spark

Odd Fire Engines

2-Stroke Engines

Configurable Firing Order

Configurable TDC Points (for odd fire)
